Introduction
Polyphenylene Sulfide Carbon Fiber Reinforced Plastic (PPS CFRP) is an advanced composite material that combines Polyphenylene Sulfide (PPS) with Carbon Fiber Reinforced Plastic (CFRP) to achieve exceptional performance in high-temperature and mechanically demanding or harsh environments. PPS is an engineering plastic known for its superior heat resistance and chemical stability, while CFRP offers lightweight, high-strength performance. The integration of these two materials has positioned PPS CFRP as a cutting-edge composite material across multiple industries.
In this column, we explain the fundamental properties, advantages, and applications of PPS CFRP.
Basic Properties of PPS?
PPS (polyphenylene sulfide) is an engineering plastic that boasts outstanding stability under elevated temperatures and chemically corrosive conditions. These advantages make it well-suited to diverse industrial applications. PPS properties include:
– Heat Resistance: PPS can be used at temperatures above approximately 260°C and is considered to have very high heat resistance.
– Chemical Resistance: PPS exhibits excellent resistance to strong acids, alkalis, and oils, maintaining structural performance in harsh chemical environments.
– Mechanical Strength: It provide high tensile strength and rigidity, delivering mechanical performance comparable to many metals.
Basic Properties of CFRP
Carbon Fiber Reinforced Plastic (CFRP) is a composite material consisting of carbon fiber embedded in a resin matrix. It is recognized for its extremely high strength and lightweight characteristics. CFRP properties include:
– High Strength and Rigidity: The exceptional rigidity and high strength-to-weight performance of CFRP offer multiple distinct advantages in aircraft and automotive components, sporting equipment, and other performance-critical applications.
– Corrosion Resistance: CFRP demonstrates superior resistance to corrosion compared to metals, enabling long-term and stable performance with minimal deterioration.
– Excellent Fatigue Resistance: CFRP performs reliably under repeated loading and high-stress conditions.
Properties of PPS CFRP
The combination of PPS and CRP integrates and enhances the complementary advantages of each material, resulting in the following PPS CFRP characteristics:
– Excellent Performance in High-temperature Environments: The superior heat resistance of PPS allows PPS CFRP to perform stably in elevated temperatures where conventional CFRP materials are often limited. This makes it ideal for use in engine components, and structures exposed to high-temperatures and other harsh conditions.
– Lightweight and High Strength: The lightweight properties of CFRP combined with the added structural strength of PPS enable production of extremely strong and lightweight components, making it ideal for use in aircraft, automobiles, and precision equipment.
– Chemical Resistance: PPS’s inherent chemical resistance combined with CFRP’s high mechanical strength facilitates improved durability and structural performance in harsh chemical environments.
– High Rigidity and Wear Resistance: PPS CFRP demonstrates exceptional resistance to mechanical loading, friction, and deformation due to mechanical wear.
Applications of PPS CFRP
The distinct and advanced properties of PPS CFRP have accelerated its adoption across diverse industries. It is gaining particular traction in the following areas:
Automotive Industry
PPS CFRP is being leveraged for weight reductions in engine components, exhaust systems, and auto body sections that required high resistance to heat and mechanical wear. The balanced combination of weight reduction and structural strength contributes to improved fuel efficiency and driving performance.
Aerospace Industry

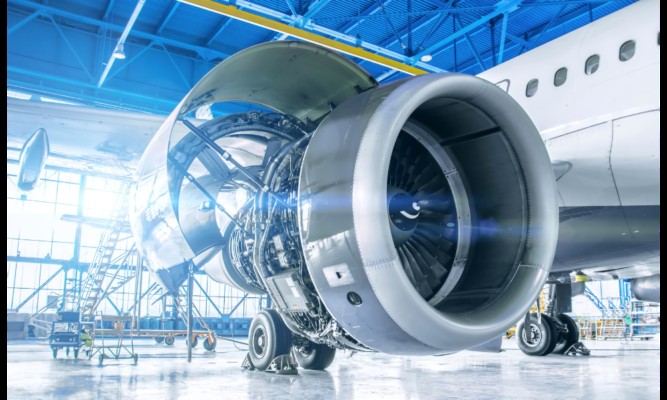

Within the aerospace industry, PPS CFRP is applied to internal and structural aircraft components—including aircraft frames, wing structures, and engine-adjacent component, where strict weight and thermal requirements must be met.
Electronics
PPS CFRP is also being leveraged in electronic equipment components and connecting parts that operate under high temperatures or environments prone to abrasion.
Precision Instruments
In precision instruments and measuring equipment, PPS CFRP has become the material of choice for components that require low-density, high-mechanical strength, superior resistance to abrasion to ensure accuracy and long-term reliability.
PPS CFRP Manufacturing Methods
PPS CFRP is processed using established CFRP manufacturing methods. These include the following:
– Prepreg Molding: Carbon fiber sheets are pre-impregnated with PPS resin and then molded through controlled heat and pressure. This method is well-suited for high-precision components and complex geometries.
– Compression Molding: Compression molding is typically employed for molding high-precision PPS CFRP structures that require rapid and efficient production.
– Injection Molding: Injection molding is used to create molded structures from a compound mixture of PPS and carbon fiber. This method is typically employed for producing high-precision structures in large quantities.
Summary
PPS CFRP is an advanced composite that integrates exceptional heat and chemical resistance with high strength-to-weight performance, driving innovation across a broad spectrum of industries, including aircraft, automobiles, and precision instruments. Its distinctive properties significantly improve the performance of structures and components operating in harsh environments and conditions, thereby enhancing overall product quality. PPS CFRP is expected to expand into an even broader range of industrial applications as technological developments continue to advance and emerge.
