Introduction

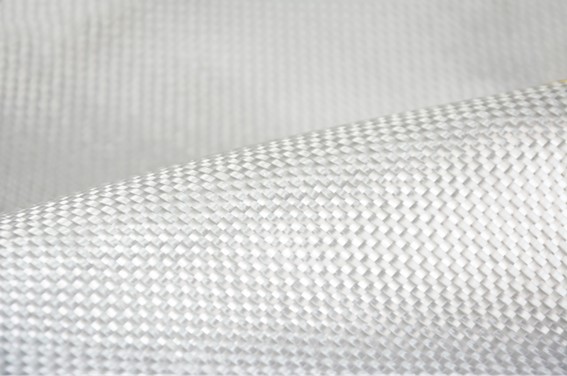

Glass Fiber Reinforced Plastic (GFRP) integrates reinforcing glass fibers with a polymer resin matrix to form an advanced composite material distinguished by its superior strength-to-weight ratio, corrosion resistance, and electrical insulation properties.
This column outlines the key characteristics of GFRP and explores the various fields and applications in which it is being leveraged.

Features of GFRP

-High Strength-to-Weight Ratio: GFRP is considerably lighter than steel and aluminum, while exhibiting comparable high-strength properties.
– Corrosion Resistance: GFRP demonstrates high resistance to chemical and moisture-induced degradation, supporting long-term performance in outdoor and marine environments.
– Electrical Insulation: As a non-conductive material, GFRP is highly suitable for electrical and electronics-related applications.
-Versatile Molding: Superior moldability enables fabrication of complex geometries, offering incredible design flexibility.

Key GFRP Applications

Building and Civil Engineering

– Bridge structural members, high-performance roofing materials, sound barriers, and construction reinforcement components.

Shipbuilding and Automotive

– Boat hulls, automobile hoods, and exterior body elements.

Industrial Machinery and Equipment

– Storage tanks, piping systems, and cooling tower components in industrial chemical plants

Electrical and Electronics Components

– Insulation components, switchboard covers, and antenna housings.

Summary

GFRP is extensively utilized across diverse industries due to its long-term durability, lightweight characteristics, and excellent moldability. It is particularly suited to environments that demand high corrosion resistance, where conventional metals may be prone to degradation. Further development of increasingly high-performance and functional GFRP products is on the horizon as technologies continue to advance.
